All-New Tata Aria 2014
Tata Motors launches the all-new Tata Aria
Starts at Rs 9.95 lakh (ex-showroom New Delhi)
- New feature-loaded Aria powered with the all-new VARICOR 2.2 litre engine, with new turbo charger, delivering 150 PS power and 320 Nm torque
- Engine warranty of 3 years or 150,000 kms, whichever is earlier
- Fitted with state-of-art JBL HARMAN premium sound system
- New stylised decals, clear lens tail lamps and black bezel headlamps
- In-dash satellite navigation provides destination guidance
- Luxuriouspremium leather upholstery and three-row theatre-style flexible seating
- Selectable 4x4 with Torque-on-Demand System
- Six airbags to protect occupants from every side
- Darkness sensing‘follow me home’headlamps'and rain-sensing wipers
- Steering mounted music and cruise control with BLUE5 connect
- Dual AC with automatic climate control
- ABS, EBD, ESP and Traction Control System, for superior stability and vehicle control
- Electrically adjustable and retractable ORVMs
- Keyless entry with remote integrated key
- Reduced cost of maintenance – new timing belt with improved durability,new replaceable cartridge-type pre-filter, for improved filtering, enhancing robustness of fuel injection system,
- Available in 3 trims levels – PURE LX, PLEASURE and PRIDE 4x4, starting at an attractive price of Rs 9.95 lacs
- Vehicle warranty of 3 years or 100,000 kms, whichever is earlier
Women driving
Sorry folks! this video was shared by my friend and its a real funny one, women folks no hard feelings please.
Tata Safari - Technical Specifications
Tata Safari
Tata Safari is also called as poor man's pajero in India by many. This is a very good but a little outdated looking SUV from the Tata stable.
| Technical Specifications | ||||
| Dimensions | LX | EX | GX | VX |
| Overall Length (mm) | 4650 | |||
| Overall Width (mm) | 1918 | |||
| Overall Height (mm) | 1925 | |||
| Wheel Base (mm) | ||||
| Ground Clearance (mm) | 205 | |||
| Kerb weight (kg) | 2650 - 2WD, 2780 - 4WD | |||
| Fuel Tank Capacity (L) | 65 | |||
| Engine | LX | EX | GX | VX |
| Engine Type | VTT DiCOR | |||
| Displacement | 2179 | |||
| Fuel | Diesel | |||
| Fuel System | DICOR | |||
| No. of Valve/OHC | 16 Valve DOHC | |||
| Performance | LX | EX | GX | VX |
| Max. Output(PS)/rpm | 140/4000 | |||
| Max. Torque (NM)/rpm | 320/1700-2700 | |||
| Transmission | LX | EX | GX | VX |
| Type | Manual | |||
| Gears | 5 Speed (Synchromesh with Overdrive) | |||
| Tyres & Wheels | LX | EX | GX | VX |
| Tyre Size | 235/70 R 16, 105 S | |||
| Tyres | ||||
| Wheels | steel |
steel 2WD, Alloy 4WD |
Alloy | Alloy |
| Suspension | LX | EX | GX | VX |
| Front Suspension | Independent Double Wishbone with Torsion bar | |||
| Rear Suspension | 5 link Suspension with coil springs | |||
| Steering | LX | EX | GX | VX |
| Steering System | Power Steering. Collapsible & Height adjustable | |||
| Minimum Turing Radius(m) | 6 | |||
| Brakes | LX | EX | GX | VX |
| Front | Ventilated Disc brake with Twin Pot caliper | |||
| Rear | Auto Adjusting Drum brake | |||

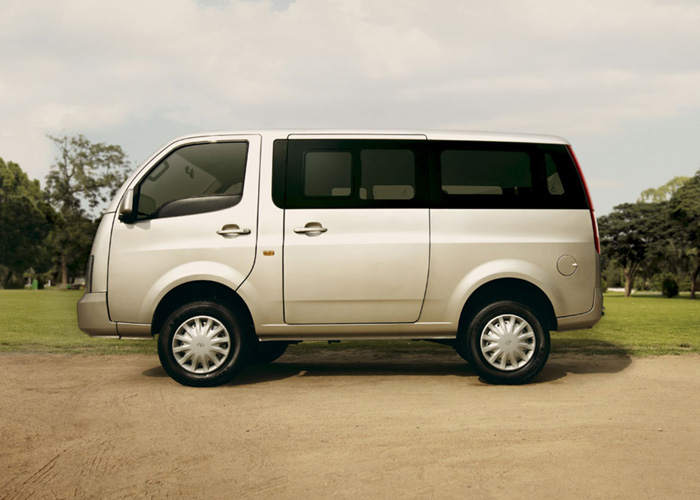

Tata Venture
Tata Motors launches the Tata Venture in Rajasthan
Tata Motors today announced the launch of Tata Venture in Rajasthan. The Tata Venture is a multi-purpose vehicle (MPV) with the footprint and maneuverability of a hatchback car, but the interior space of a utility vehicle.
The less than 4 metre long Tata Venture can comfortably accommodate eight passengers in three front facing rows and has ample luggage space. A glasshouse effect with plug-in windows for second row passengers contributes to the distinctive exterior design while the contemporary interiors sport a two-tone beige and black theme. Comfort and convenience of both driver and passengers have been adequately addressed with dual HVAC, power steering, power windows, reverse parking aid, keyless entry with engine immobiliser and rear wipers.
A semi monocoque construction provides the required rigidity while the robust shell has energy absorbing crumple zones built in. A collapsible steering and side impact beams protect occupants in an exigency. The Tata Venture meets crash safety norms applicable in the domestic market.
The Tata Venture is powered by a 1.4 Litre turbo diesel engine, delivering 71 PS power, with best in class fuel efficiency among diesel MPVs in the country. The mileage as certified by ARAI is 15.42 kmpl.
The Tata Venture will be available in 5, 7 and 8-seater options in 3 row front facing configuration and will be available in a range of 5 colors and 3 trim levels.
The Tata Venture comes with a warranty of 2 years or 75,000 kms (whichever is earlier). In Rajasthan, it will be available across 24 dealerships (13 passenger car dealerships and 11 commercial vehicle dealerships) in the first phase.
The Tata Venture is priced in the range of Rs. 4.05 lakhs and Rs. 5.07 lakhs (ex-showroom Jaipur).
https://ausbon.com/index.php/en/itemlist/user/130-ausbon?start=8#sigProGalleriab5a80eef92
Mitsubishi EVO VII technical Manual
Mitsubishi Lancer Evolution VII technical Manual, from Scribd.com. Hope this is useful for the techies... This document can be downloaded or viewed directly from scribd.com
mitsubishi evo vii technical manual
Logan Petrol - Technical specifications
Logan Petrol
|
Technical Specifications |
||
|
Dimensions |
GL/GLE/GLX 1.4 |
GL/GLE/GLX 1.6 |
|
Overall Length (mm) |
4247 |
|
|
Overall Width (mm) |
1740 |
|
|
Overall Height (mm) |
1534 |
|
|
Wheel Base (mm) |
2630 |
|
|
Ground Clearance (mm) |
172 |
|
|
Fuel Tank Capacity (L) |
50 |
|
|
|
||
|
Engine |
GL/GLE/GLX 1.4 |
GL/GLE/GLX 1.6 |
|
Engine Type |
4 cylinder |
4 cylinder |
|
Displacement |
1390 |
1598 |
|
Fuel |
Petrol |
Petrol |
|
Fuel System |
MPFI |
MPFI |
|
No. of Valve/OHC |
8 valves |
8 valves |
|
Compression Ratio |
|
|
|
|
||
|
Performance |
GL/GLE/GLX 1.4 |
GL/GLE/GLX 1.6 |
|
Max. Output(PS)/rpm |
75 / 5500 |
84.5 / 5500 |
|
Max. Torque (NM)/rpm |
110 / 3000 |
128 / 3100 |
|
|
||
|
Transmission |
GL/GLE/GLX 1.4 |
GL/GLE/GLX 1.6 |
|
Type |
Manual |
|
|
Gears |
5 speed |
|
|
|
||
|
Tyres & Wheels |
|
|
|
Tyre Size |
|
|
|
Tyres |
|
|
|
Wheels |
|
|
|
|
||
|
Suspension |
|
|
|
Front Suspension |
|
|
|
Rear Suspension |
|
|
|
|
||
|
Steering |
|
|
|
Steering System |
|
|
|
Power Assist |
|
|
|
Minimum Turing Radius(m) |
|
|
|
|
||
|
Brakes |
|
|
|
Front |
|
|
|
Rear |
|
|
|
|
||
Mahindra Scorpio - Technical Specifications
Mahindra Scorpio
Scorpio is an SUV from the Mahindra Stable. This Boxy SUV is liked by many people in India mainly due to lower price.
| Technical Specifications | ||||
| Dimensions | LX | SLE | VLX | VLX Automatic |
| Overall Length (mm) | 4430 | |||
| Overall Width (mm) | 1817 | |||
| Overall Height (mm) | 1975 | |||
| Wheel Base (mm) | 2680 | |||
| Ground Clearance (mm) | ||||
| Kerb weight (kg) | 2510 Kg for 2WD, 2610 Kg for 4WD | |||
| Fuel Tank Capacity (L) | 60 | |||
| Engine | LX | SLE | VLX | VLX Automatic |
| Engine Type | mhawk CRDe, Turbo charged, DI, Common Rail Diesel Engine | |||
| Displacement | 2179 CC | |||
| Fuel | Diesel | |||
| Fuel System | Common Rail Diesel & DI | |||
| Performance | LX | SLE | VLX | VLX Automatic |
| Max. Output(PS)/rpm | 120 bhp (86.7Kw)/4000 rpm | |||
| Max. Torque (NM)/rpm | 290 Nm/1800-2800 rpm | |||
| Transmission | LX | SLE | VLX | VLX Automatic |
| Type | Manual | Automatic | ||
| Gears | 5 Speed | 6 Speed | ||
| Tyres & Wheels | LX | SLE | VLX | VLX Automatic |
| Tyre Size | P 235/70 R16 | |||
| Tyres | Radial Tubeless | |||
| Wheels | Alloy | |||
| Suspension | LX | SLE | VLX | |
| Front Suspension | 2WD Independent, Coil Spring, Anti Roll Bar 4WD Independent, Torsion bar |
|||
| Rear Suspension | Multilink, Coil Spring | |||
| Steering | LX | SLE | VLX | VLX Automatic |
| Steering System | ||||
| Power Assist | ||||
| Minimum Turing Radius(m) | 5.6 m for 2WD & 4WD | |||
| Brakes | LX | SLE | VLX | VLX Automatic |
| Front | Disc and caliper type, Twinpot & Tandem Booster (with anti-lock braking system) | |||
| Rear | Drum Type | |||
Santro - Technical Specifications
Hyundai Santro
Still one of the best selling and hot tall boy cars available in India. This car is from Hyundai stable.
| Technical Specifications | |
| Dimensions | |
| Overall Length (mm) | 3565 |
| Overall Width (mm) | 1525 |
| Overall Height (mm) | 1590 |
| Wheel Base (mm) | 2380 |
| Fuel Tank Capacity (L) | 35 |
| Engine | |
| Engine Type | |
| Displacement | 1086 |
| Fuel | Unleaded Petrol |
| Fuel System | MPFI |
| Performance | |
| Max. Output(PS)/rpm | 63/5500 |
| Max. Torque (NM)/rpm | 9.8/3000 |
| Transmission | |
| Type | Manual |
| Gears | 5-Speed with overdrive in 4th and 5th |
| Tyres & Wheels | |
| Tyre Size | 155/70 R13 |
| Tyres | Tubeless radial |
| Wheels | Steel |
| Suspension | |
| Front Suspension | Mc Pherson Strut with Coil Spring |
| Rear Suspension | Torsion Beam Axle with Coil Spring |
| Steering | |
| Steering System | Power steering |
| Minimum Turing Radius(m) | 4.4 |
| Brakes | |
| Front | Ventilated Disc |
| Rear | Self Adjusting Drum |
